Maglev Centrifugal Blowers: Revolutionizing Energy Efficiency in Biological Aeration Processes
Maglev Centrifugal Blowers: Revolutionizing Energy Efficiency in Biological Aeration Processes
In the operation of modern municipal and industrial wastewater treatment plants (WWTPs), balancing “effluent compliance” with “operational cost (OPEX) optimization” remains a central challenge. While a wastewater plant comprises multiple stages, the single most critical and energy-intensive stage is undoubtedly the aeration process within secondary biological treatment.
Driven by global movements toward carbon neutrality, the Magnetic Levitation Centrifugal Blower (Maglev Blower) has emerged as the definitive industry standard, reshaping the energy dynamics of this core wastewater process.
Process Mapping: Where Exactly is the Maglev Blower Used?
In a standard wastewater treatment layout (such as the classic AAO process), influent wastewater first undergoes primary physical treatment (screening and grit removal) to eliminate large solids. It then flows into the critical Secondary Biological Treatment Stage (consisting of anaerobic, anoxic, and aerobic zones).

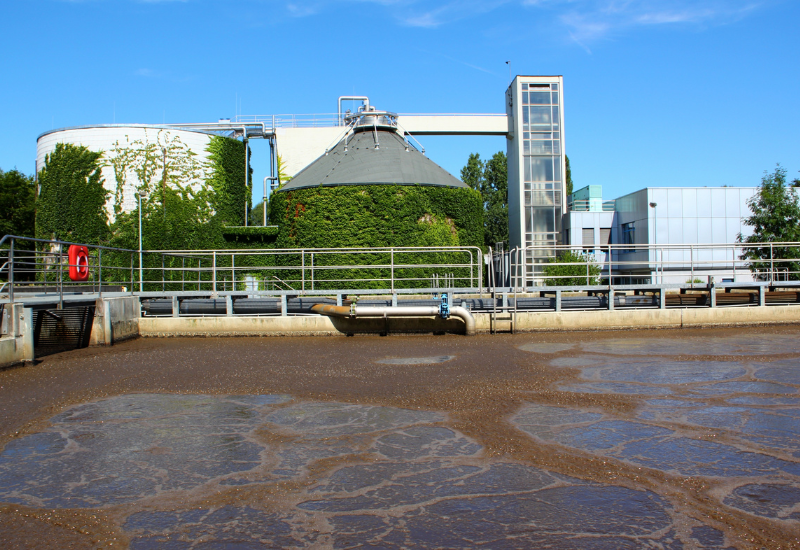

The Maglev Blower is specifically deployed at the core process node: The Aeration Tank (Aerobic Zone).
Driving Biological Reactions: The microorganisms (activated sludge) in the aerobic tank require a continuous and massive supply of Dissolved Oxygen (DO) to consume and break down organic pollutants (COD, BOD, ammonia nitrogen, etc.).
Oxygenation & Mixing: The Maglev Blower forces compressed air through a pipe network into diffusers at the bottom of the tank. This not only provides the necessary oxygen for microbial survival but also generates fluid agitation, keeping the activated sludge uniformly suspended and mixed with the wastewater.
The Energy Focal Point: Because these biological tanks require 24/7 uninterrupted oxygenation, the aeration system typically consumes 50% to 70% of the entire WWTP’s total electrical energy. Optimizing air-supply efficiency at this specific process step is therefore the single most effective way to cut plant operating costs.
Technology Decoded: Why Maglev Reshapes Aeration Efficiency
The staggering energy savings achieved during the aeration process stem from the Maglev blower’s complete elimination of mechanical friction. The system relies on three pillars of advanced technology:
Active Magnetic Bearings (AMBs): Utilizing a high-speed electromagnetic feedback loop, the rotor is fully levitated during rotation at tens of thousands of RPM. This achieves zero mechanical contact, zero wear, and zero friction loss.
High-Speed Permanent Magnet Synchronous Motor (PMSM): Delivering efficiency levels typically exceeding 96%, a PMSM offers high power density and direct-drive functionality, eliminating standard transmission losses found in older gear-driven designs.
Smart Variable Frequency Drive (VFD) System: Wastewater tracking reveals distinct diurnal fluctuations (peak daytime volumes versus low nighttime flows). The integrated VFD auto-adjusts blower speeds based on real-time DO sensor data, ensuring “air supply on demand” and preventing costly over-aeration during low-demand hours.
Summary: Maglev Power, The Inevitable Choice for Green Water Solutions
In conclusion, the Magnetic Levitation Centrifugal Blower delivers unparalleled core advantages for secondary biological aeration workflows. By engineering a “zero-friction” operational environment, it shatters traditional mechanical efficiency bottlenecks to slash energy costs by up to 30%+. Its “100% oil-free” delivery safeguards the delicate activated sludge ecosystem from hazardous oil mist contamination. Furthermore, its “wide flow turndown range” and “virtually maintenance-free design” perfectly align with the transition toward digitalized, smart, and unattended wastewater treatment operations.
As a dedicated provider of advanced industrial power and precision engineering solutions, we are committed to empowering the environmental and water treatment sectors with reliable system performance. If you are looking to audit your current aeration efficiency, upgrade your biological treatment facilities, and significantly optimize your long-term OPEX, contact our technical expert team today to co-create a sustainable, low-carbon future.
